Intrac QUADRA Checkout Counters
Premium full-service metal checkout counters from Italy — ergonomically certified, fully customisable, built to last.

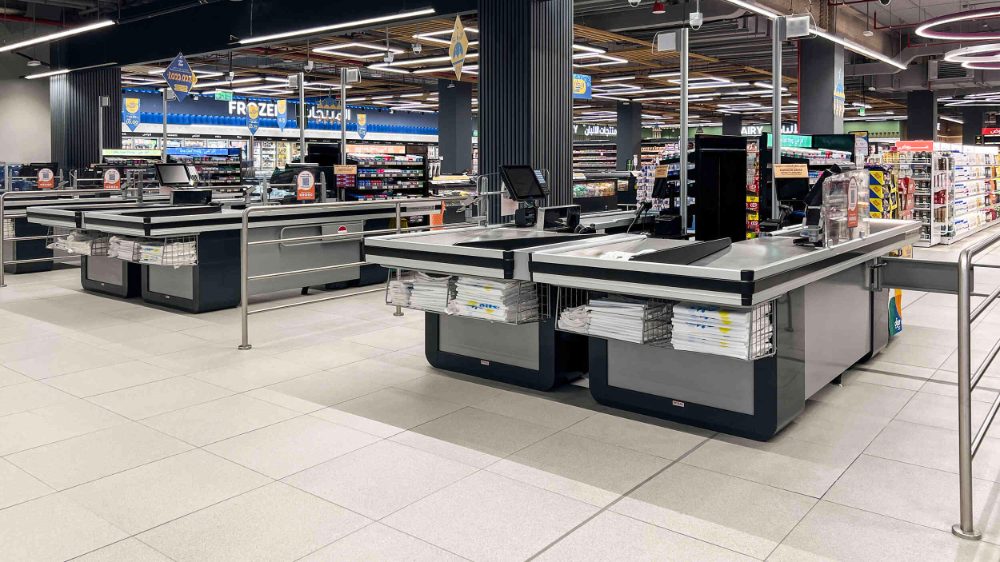

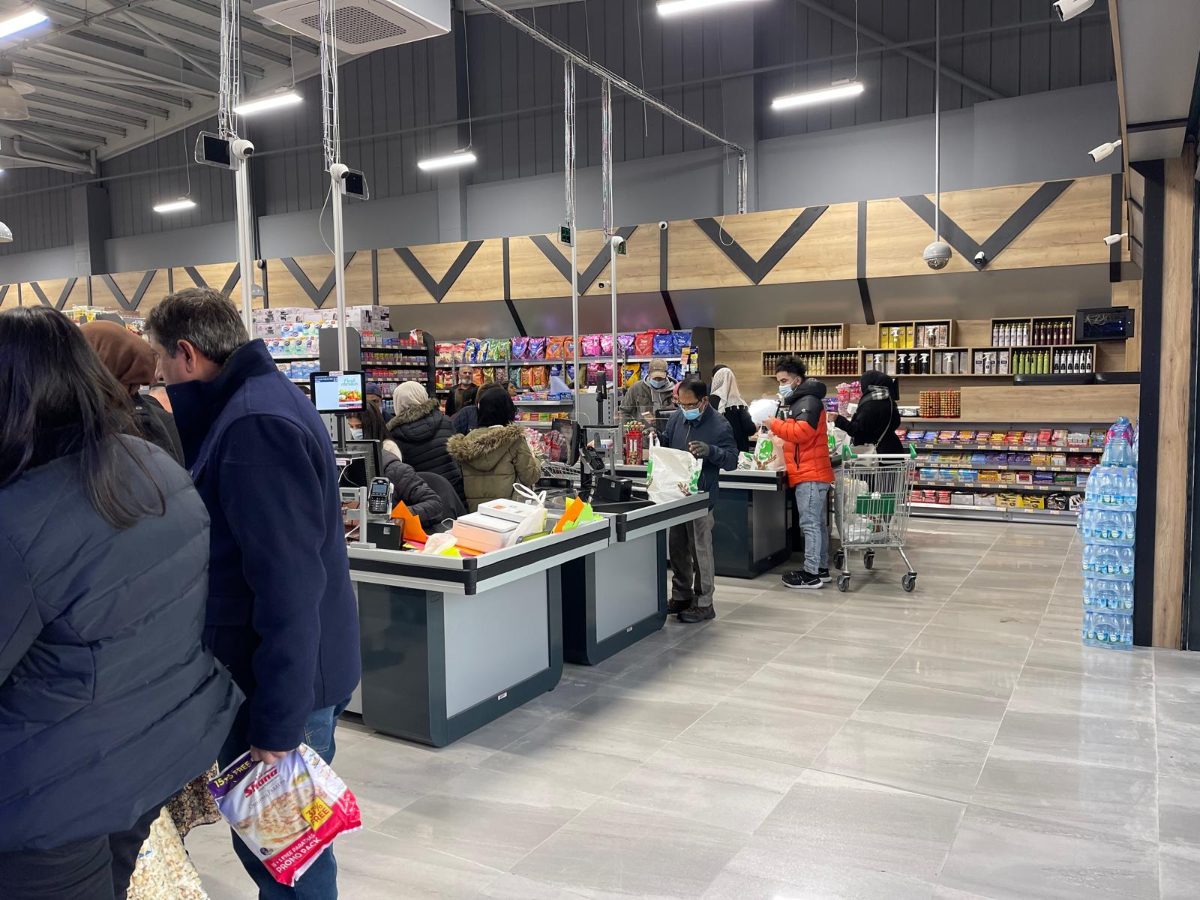

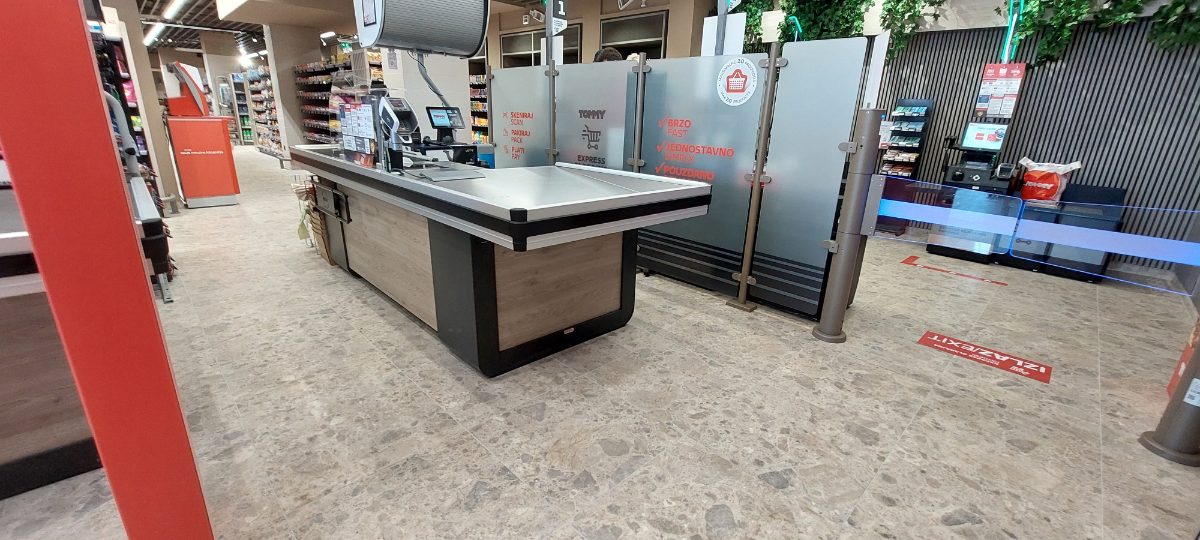

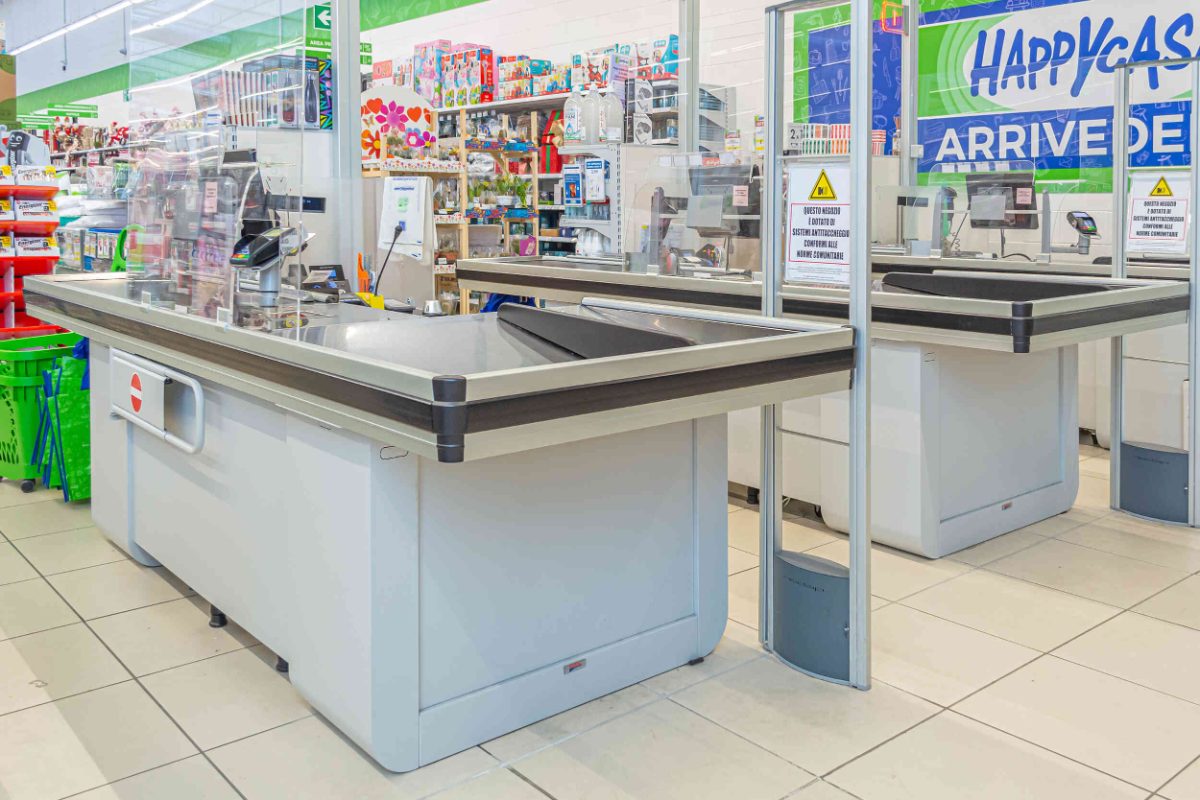

The QUADRA Line
The QUADRA checkout counter range features simple, essential design made from quality materials — guaranteeing robust and durable performance over time. The wide range of models and accessories ensures maximum utilisation of work space.
Key Construction Features
-
✓
Upper structure: Anodized aluminium and painted steel with polypropylene connection corners, protected by a rigid black PVC bumper profile
-
✓
Lower structure: Square steel frame, RAL 7016 Anthracite as standard (other colours on factory order), with legs set up for floor mounting
-
✓
Conveyor belt: Black antistatic PVC and polyester double-ply belt; high-power oil-cooled drive motor; soft start optional; double photocell sensors for safety
-
✓
Centre module: 550mm, with scale & scanner hole ready cut out at the factory and cash drawer space built in (cash drawer not supplied)
-
✓
Rear bagging area: Inclined, with a square shape for maximum capacity
-
✓
Register shelf: Black scratch-resistant melamine-faced wood with ABS perimeter profile; touch-type electronic control panel in ergonomic position
Models Available From Stock
The following QUADRA models are held in stock in the UK for fast delivery. All checkouts are supplied in RAL 7016 Anthracite, with the scale & scanner hole ready cut out at the factory and cash drawer space built in (cash drawer not supplied).
QUADRA NSCV 268 BtB — Full Deck with Belt
Belt / Centre / Bagging: 131 / 55 / 82 cmBack-to-back pair (R + L) with motorised belts and a shared operator zone between the two counters. Spacious two-customer bagging area on each side.
Overall: 2680 x 2400 x 870 (H) | All dimensions in mm (top view)
QUADRA NSCVD 228 — Half Deck with Belt
Belt / Centre / Bagging: 91 / 55 / 82 cmNarrow checkout counter with motorised belt and a straight single-customer bagging area. Suited to discount stores and space-saving layouts.
Overall: 2280 x 1150 x 870 (H) | All dimensions in mm (top view)
QUADRA PSCV 1880 — Full Deck without Belt
Worktop / Centre / Bagging: 71 / 55 / 62 cmBeltless checkout counter with a 705mm worktop and a full-depth two-customer bagging area. The most compact QUADRA model — ideal for small shops and tight layouts.
Overall: 1880 x 1150 x 870 (H) | All dimensions in mm (top view)
Other Sizes & Configurations — Special Factory Order
All other QUADRA models and lengths are available on special factory order from INTRAC, Italy. Lead times on request.
- NSV / NSCV standard counters — lengths 1880mm to 3680mm
- NSVD / NSCVD narrow counters — lengths 1680mm to 3680mm
- NSV / NSCV BtB back-to-back pairs — lengths 1880mm to 3680mm
- TANDEM staggered pairs — lengths 3130mm to 5130mm
- Custom body colours, branded conveyor belts and LED communication panels
Supplied With — Included Accessories
Our stock Intrac checkouts are sold complete with the following accessories fitted as standard.
Standard Equipment
- Legs in RAL 7016 Anthracite, trims in RAL 9006 aluminium
- Motorised conveyor belt with touch control panel (NSCV 268 BtB: 1350 x 496mm, NSCVD 228: 950 x 496mm)
- Stainless steel worktop 710 x 575mm on the beltless PSCV 1880
- Scanner shelf with factory cut-out for 402 x 295mm scale / scanner and space for a 460mm cash drawer
- Stainless steel bagging basin
- Black melamine register shelf
- UK plug adaptor
| Accessory | NSCV 268 BtB Full Deck with Belt | NSCVD 228 Half Deck with Belt | PSCV 1880 Full Deck without Belt |
|---|---|---|---|
| Semi-Elipse scanner protection Transparent operator screen with plexi money tray | ✓ | ✓ | ✓ |
| Rotating PIN-pad support with arm L100 x H180mm | ✓ | ✓ | ✓ |
| CPU / service fixed shelves 2 shelves under the counter | L1150 + L950 | L1150 + L975 | 2 x L1150 |
| Internal base legs 2 floor base legs, RAL 7016 | L1150 + L950 | L1150 + L575 | 2 x L1150 |
| Grocery deviator Guides products towards the scanning area | ✓ | ✓ | — |
| Crumb collector with brush Keeps the scanning area clean | ✓ | ✓ | — |
| Cable column 2 x Ø30mm With 3000mm aluminium profile | ✓ | ✓ | — |
| Checkout number signal (Daggerboard) Red / green LED, numbers 10–99 | ✓ | ✓ | — |
| Next customer divider With English labels | 3 bars | 2 bars | — |
| Back-to-back deck connection piece 825mm, RAL 9006 — closes the middle gap between the two bagging decks | ✓ | — | — |
| Grocery divider in the basin L825mm | ✓ | — | — |
| Trolley blocking gate H20 – L60/100 | ✓ | — | — |
| Emergency exit label | ✓ | — | — |
Cash drawer is not included. Additional accessories are available on request.
Optional Extras — On Request
💵 Cash Management
Integration of advanced automatic cash management solutions for secure, error-free cash handling with fewer operator errors.
🌟 Branded Conveyor Belt
Conveyor belt customised via vulcanisation process with your store logo in corporate brand colours.
📺 LED Communication Panel
Counter leg panels available with wood-finish graphic print or illuminated LED display for customer communication.
♿ Accessibility Shelf
Optional shelf at end of bagging area (NSV/NSCV models) to facilitate accessibility for differently abled persons.
Request a Quote for Intrac Checkouts
We supply and install Intrac QUADRA checkout systems across the UK and internationally. Call us or send us your enquiry for specifications, pricing and lead times.
